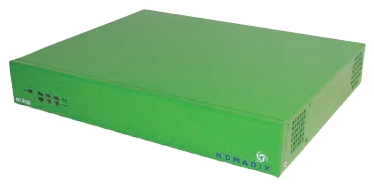

Nomadix® AG 2400

AG 2400

YesTurnkey Technology provides professional fee-based technical services for Nomadix® Access Gateways. >> Contact us...

A COST-EFFECTIVE, RELIABLE SOLUTION FOR SMALL TO MEDIUM SIZED PUBLIC ACCESS VENUES.

The Nomadix® AG 2400 is a cost-effective platform designed for small to medium sized public access venues. The AG 2400 is transport agnostic and enables the deployment of wired, wireless or hybrid networks supporting up to 200 simultaneous users.

At-A-Glance

  • Powered by the Nomadix Service Engine (NSE) Core
  • High performance networking device for large venue deployments
  • Transport agnostic, capable of supporting either wired or wireless networks
  • Supports up to 200 simultaneous users

Customer Acquisition

  • Nomadix®'s patented Dynamic Address Translation (DAT) technology offers transparent network connectivity by resolving IP configuration and browser proxy issues
  • Enables HotSpot owners to offer a user-friendly service while reducing provisioning and technical support costs

Service Provisioning

  • Home Page Redirection intercepts the user’s browser settings and directs them to a Web site for secure sign-up or log-in
  • Pre, Post and Goodbye redirection capabilities provide maximum branding flexibility for both providers and HotSpot owners

Access Control

  • Allows access to a pre-determined Walled Garden area of the Internet prior to authentication while providing an additional layer of security in the network by blocking access to the Internet until the user has been authenticated
  • Gain incremental revenues from e-commerce sites, applications or content providers before the user purchases access

Multi Mode Authentication

  • Supports secure, browser-based authentication over SSL while simultaneously supporting IEEE 802.1x and Smart Clients
  • Providers can support the widest range of authentication, wholesale and roaming options

Billing Enablement

  • Supports a wide variety of billing models using credit cards, scratch cards or monthly subscriptions – then bill by time, volume or bandwidth
  • Public Access Service Operators (PASOs) and Venue Owners can generate revenue at every touchpoint with the user – before, during, and after the connectivity purchase as well as support roaming users

Advanced Security

  • Patent-pending iNAT functionality offers unmatched VPN support
  • Session Rate Limiting (SRL) and MAC filtering capabilities significantly reduce the risks of Denial of Service (DoS) attacks protecting the very edge of the network

Management

  • Includes IPSec client for secure remote management and built-in Web Management Interface and CLI where various levels of administration can be set along with extensive SNMP support
  • Remotely manage a large number of devices using standards-based tools, keeping the cost of deployment and maintenance down

SPECIFICATIONS

Public Access

  • Dynamic Address Translation (DAT)
  • Home Page Redirection
  • (Pre and Post Authentication / Goodbye)
  • iNAT (for seamless VPN connectivity)
  • SMTP Redirection
  • Full Authorization, Authentication and Accounting Support
  • RADIUS Client / Proxy
  • Bandwidth Management
  • Information and Control Console

Media Access Control

  • CSMA/CA

Ports

  • WAN: 10/100Base-T Ethernet, RJ-45 (UTP)
  • LAN: 2-10/100Base-T Ethernet, RJ-45 (UTP)
  • DB9 serial: Management Port/Aux

Networking

  • IEEE 802.3/3u
  • IEEE 802.1d
  • DHCP Server
  • DHCP Relay
  • RADIUS Client (MD-5, PAP, CHAP, MS-CHAPv1, v2)

Security

  • iNAT
  • MAC Address Filtering
  • Session Rate Limiting
  • Authentication
  • Internal Database
  • Universal Access Method (UAM) using SSL
  • Smart Client Support (Boingo Wireless, iPass, GoRemote)
  • IEEE 802.1x (MD-5 / TLS / TTLS / PEAP)

Management

  • Multi-Level Administration Controls
  • Integrated VPN Client (IPSec) for secure
  • connection to a NOC
  • Access Control Lists
  • SNMPv2c
  • Secure XML API
  • Auto Configuration and Upgrades
  • Syslog/AAA Log

Power

  • 100 to 240 VAC, 50/60 Hz

Environment

  • Operating temperature: 5 - 40oC
  • Operating humidity: 20 - 90% RH non-condensing
  • Storage temperature: 0 - 70oC
  • Storage humidity: 5 - 95% RH

Regulatory

FCC Class B, Part 15

  • CE Mark
  • CENELEC EN 55022: 1998 + A1: 2000 + A2: 2003, Class A
  • CENELEC EN 61000-3-2:2000, EN 61000-3-3:1995 + A1:2001
  • UL Std 1950
  • CSA22.2 No. 950

Physical

  • 1U, standard 19 inch rack
  • 10.00"(L) x 10.00"(D) x 1.73"(H)
  • 254mm(L) x 254mm(D) x 44mm(H)
  • Weight: 2.27 Kg (5 lbs.)

LEDs

  • Power Indicator
  • 10/100 ACT/LINK for each Ethernet port

Performance

  • User Support: Up to 200 concurrent users
  • Throughput: 85Mbit/s
